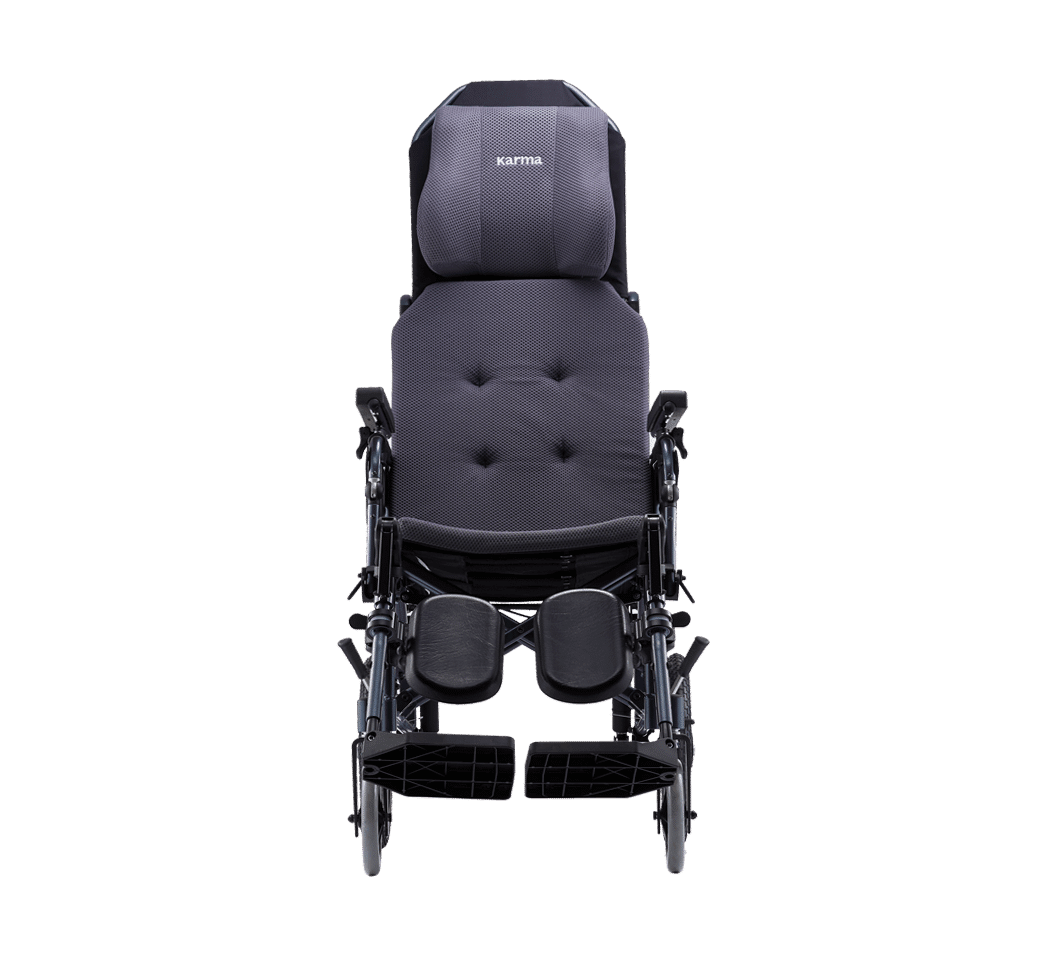

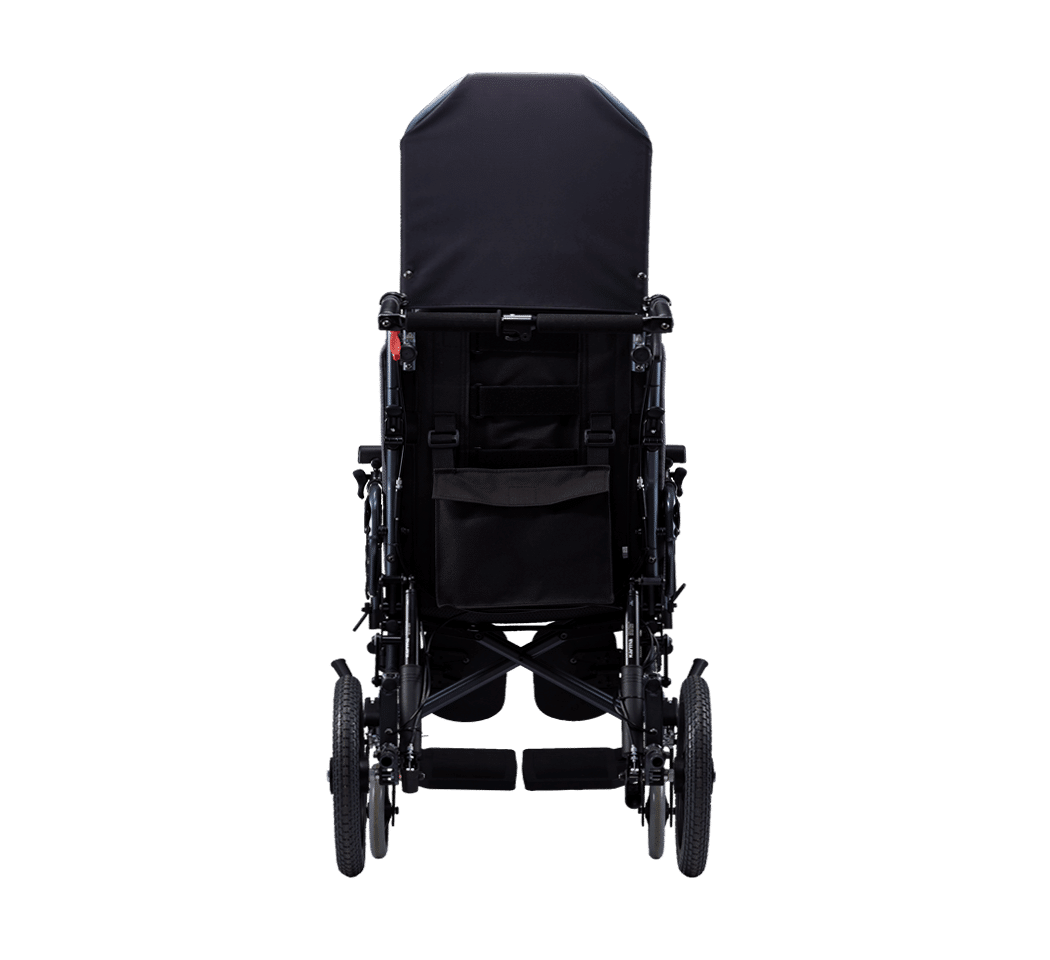

Karma MVP 502 Reclining Wheelchair

Product Information

• Description

  The Karma MVP 502 Reclining Wheelchair allows the wheelchair user to lie back and relieve pressure, while reducing the risk of sliding. With thick padded cushioning and an ergonomic headrest, it’s an ideal option for long term care users – and thanks to a foldable frame and backrest, it’s also car transportable.

  You can also choose between transit wheelchair or self-propelled wheelchair versions.

  • Articulating Legrests: Extends in length as they elevate, allowing the leg to extend freely and easing pressure on the knees.
  • Anti-sliding V-Shape Seat: Slopes downwards at a 20 degree angle near the backrest to help reduce forward sliding and pressure sores. This significantly reduces shearing,  and the need for the attendant to reposition the user.
  • Hydraulic Pressure Support System: Two hydraulic gas springs provide a smooth, controlled reclining motion and make it easy for the attendant to lift the wheelchair user back to an upright position.

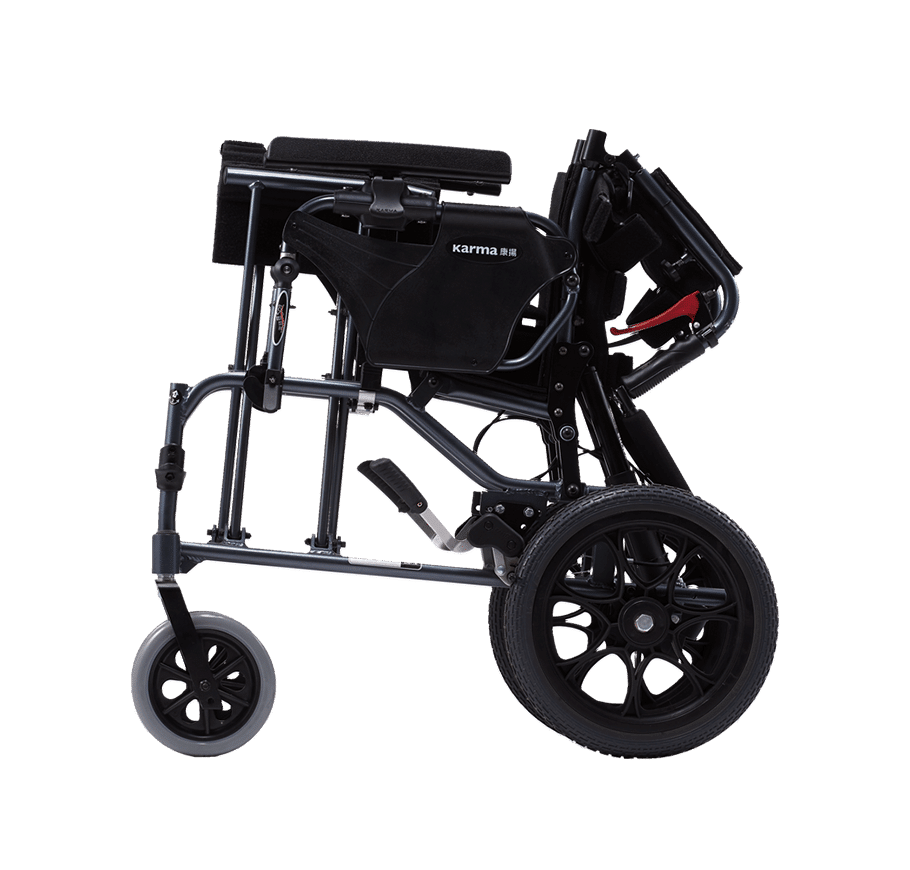

  • Foldable Push Bar: Makes it easy to push the wheelchair with just one hand, and at the same time reinforces the structure of the wheelchair. There is no need to detach because it folds with the wheelchair for storage and transport.
  • Adjustable Flip-Up Armrests: Pivotally connected to the backrest, they follow the natural movement of the arms when the backrest reclines. You can adjust the height of the armrests, with no tools required. The armrests also flip-up for easier transfers in and out of the wheelchair.
  • Tension Adjustable Backrest and Seat: Use the adjustable Velcro straps to change the tension and conform according to the wheelchair user. This helps to prevent slouching and the hammock effect.
  • Clean, Comfortable, and Fresh: the removable upholstery is anti-microbial, breathable and washable.
  • Crash Tested: The MVP 502 is approved for transportation in accordance with ISO 7176-19. This means it is suitable to be used as a seat in a motor vehicle for transport.

• Dimensions & Technical Info

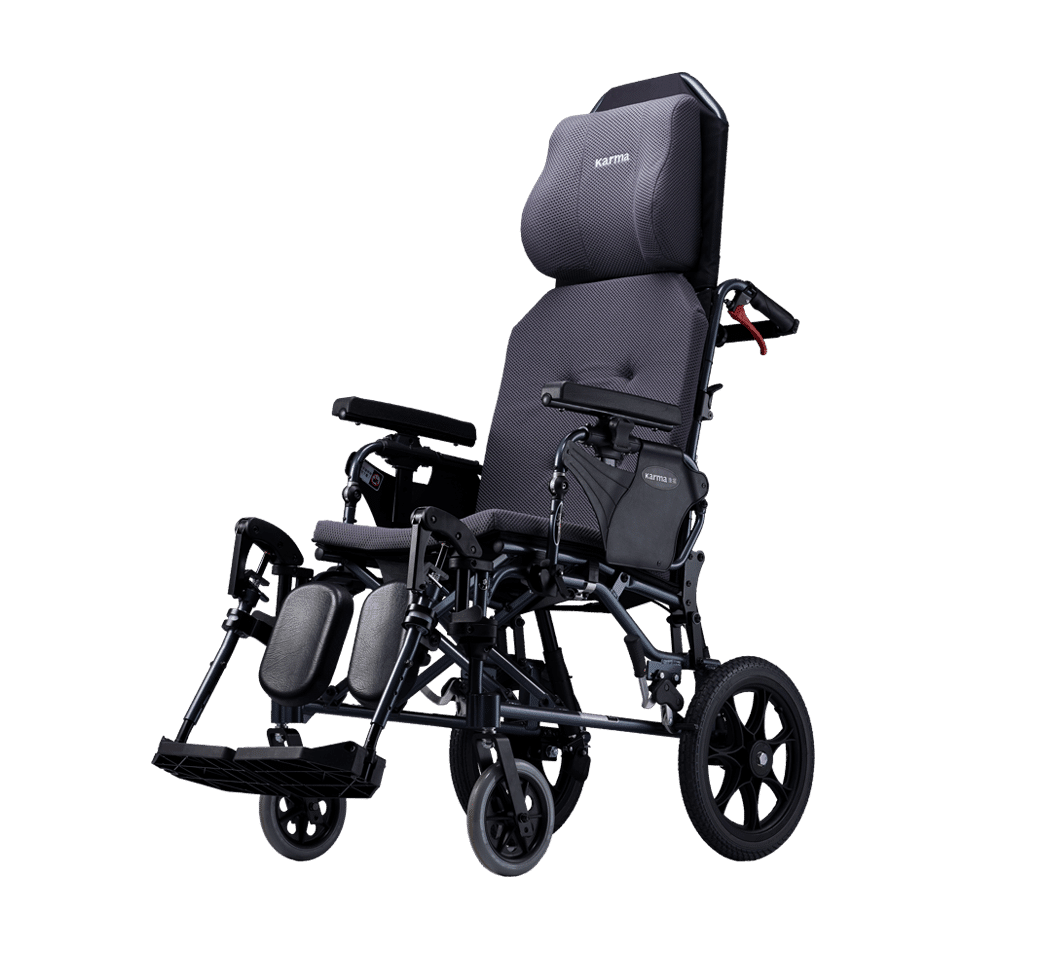

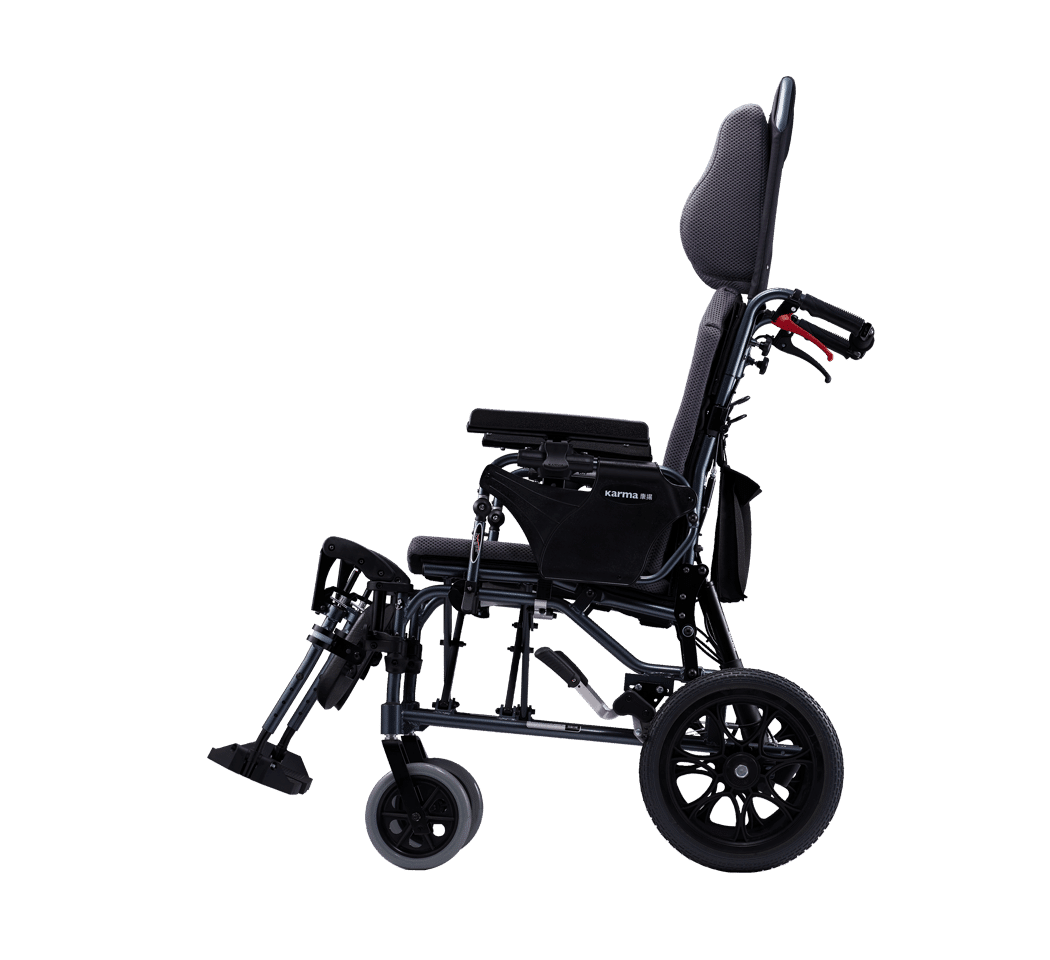

  	Transit
  Nominal seat width (in)	15	16	17	18	18	20
  Nominal seat depth (in)	16	16	16	16	18	18
  Caster x Rear wheel size (in)	7 x 14
  Maximum user weight (kg)	115
  Overall length with legrest (mm)	1190	1190	1190	1190	1225	1225
  Overall width (mm)	550	580	610	635	635	700
  Overall height (mm)	840 / 1350 (with headrest)
  Folded length (mm)	785	785	785	785	825	825
  Folded width (mm)	305	305	305	305	305	305
  Folded height (mm)	770	770	770	770	770	770
  Total mass (kg)	20.3	20.4	20.5	20.8	20.9	21.0
  Mass of the heaviest part (kg)	14.5	14.6	14.7	14.8	15.0	15.4
  Seat surface height at front edge (mm)	520	520	520	520	525	525
  Backrest angle (X°)	13 ~ 64
  Seat to backrest angle (X°)	94 ~ 147
  Backrest height (mm)	490	490	490	490	490	490
  Leg to seat angle (X°)	100 ~ 160
  Footrest to seat distance (mm)	410 ~ 485		410 ~ 485		410 ~ 485
  Armrest to seat distance (mm)	260 ~ 335		260 ~ 335		260 ~ 335

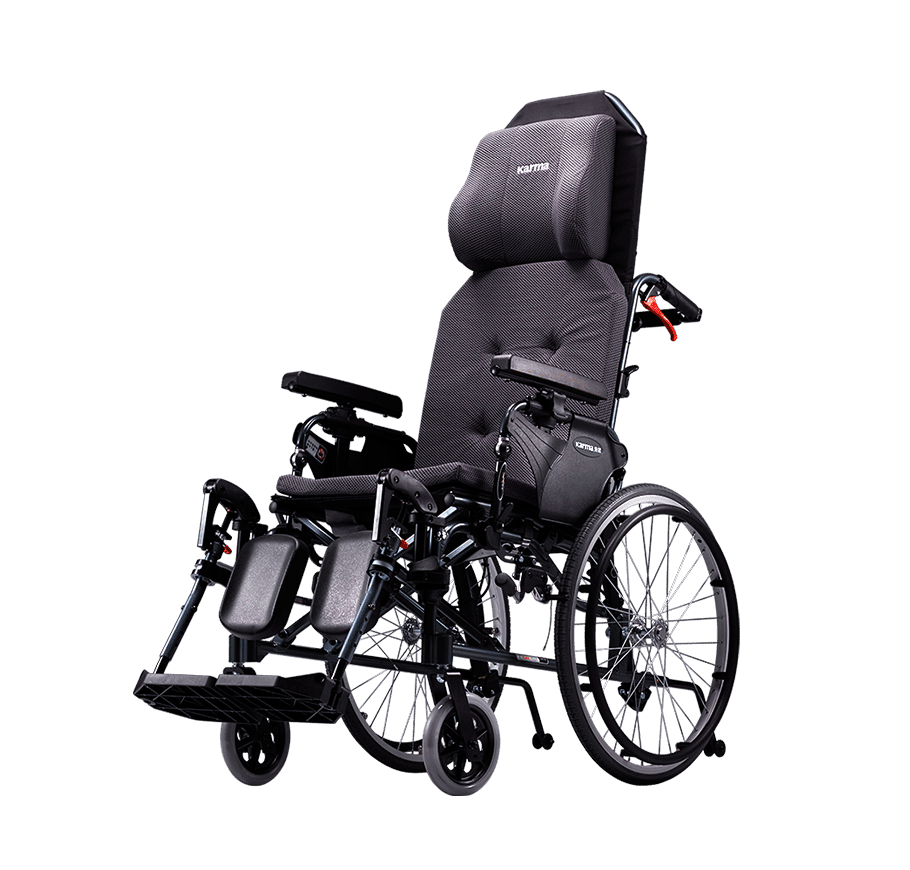

  	Self-Propelled
  Nominal seat width (in)	15	16	17	18	18	20
  Nominal seat depth (in)	16	16	16	16	18	18
  Caster x Rear wheel size (in)	7 x 22
  Maximum user weight (kg)	115
  Overall length with legrest (mm)	1190	1190	1190	1190	1225	1225
  Overall width (mm)	580	610	640	665	665	730
  Overall height (mm)	840 / 1350 (with headrest)
  Folded length (mm)	870	870	870	870	905	905
  Folded width (mm)	360	360	360	360	360	360
  Folded height (mm)	770	770	770	770	770	770
  Total mass (kg)	21.9	21.9	22.0	22.3	22.5	22.9
  Mass of the heaviest part (kg)	16.8	16.8	16.9	17.0	17.2	17.6
  Backrest angle (X°)	13 ~ 64
  Seat to backrest angle (X°)	94 ~ 147
  Backrest height (mm)	490	490	490	490	490	490
  Leg to seat angle (X°)	100 ~ 160
  Footrest to seat distance (mm)	410 ~ 485		410 ~ 485		410 ~ 485
  Armrest to seat distance (mm)	260 ~ 335		260 ~ 335		260 ~ 335
